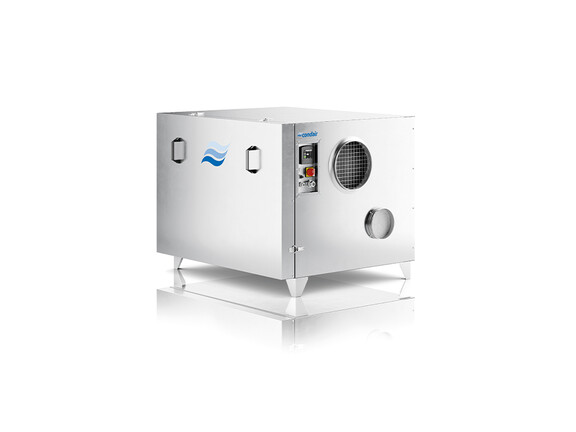

Condair DA Freezer

Desiccant-dryer

The Condair DA Freezer series delivers reliable, efficient dehumidification for deep-freeze storage and test chambers. With heavily insulated stainless steel housing and optimised components, it prevents ice formation, preserves operational space, and ensures safe, continuous performance in extreme low-temperature environments.

Condair DA Freezer dehumidifier

Top of page Features Product details Downloads FAQs References Testimonials

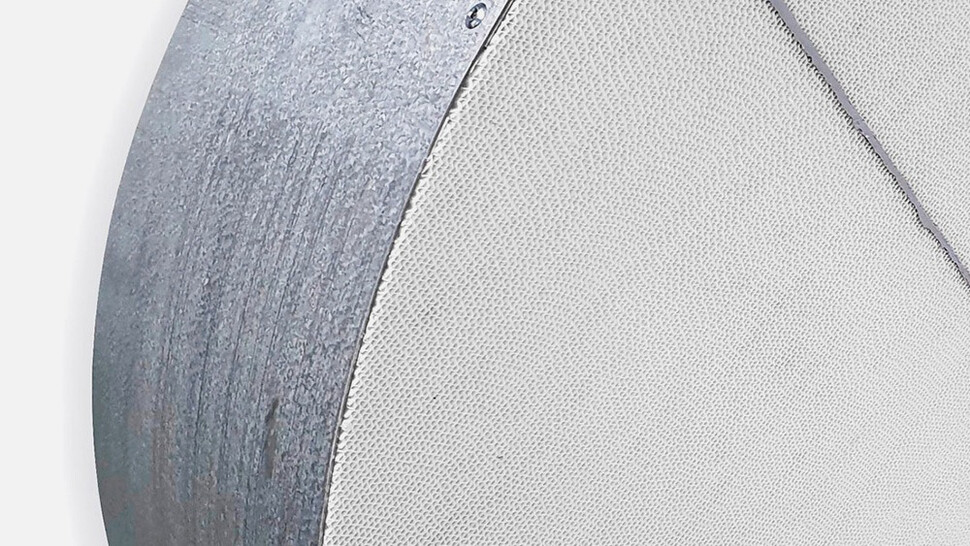

High-performance desiccant rotor

The desiccant rotor consists of a honeycomb structure made of fibreglass, coated with highly hygroscopic silica gel. The flutes provide an enormous internal surface area, enabling efficient and effective moisture transfer. The rotor material is hygienic, non-flammable and non-respirable, and the rotors are largely maintenance-free.

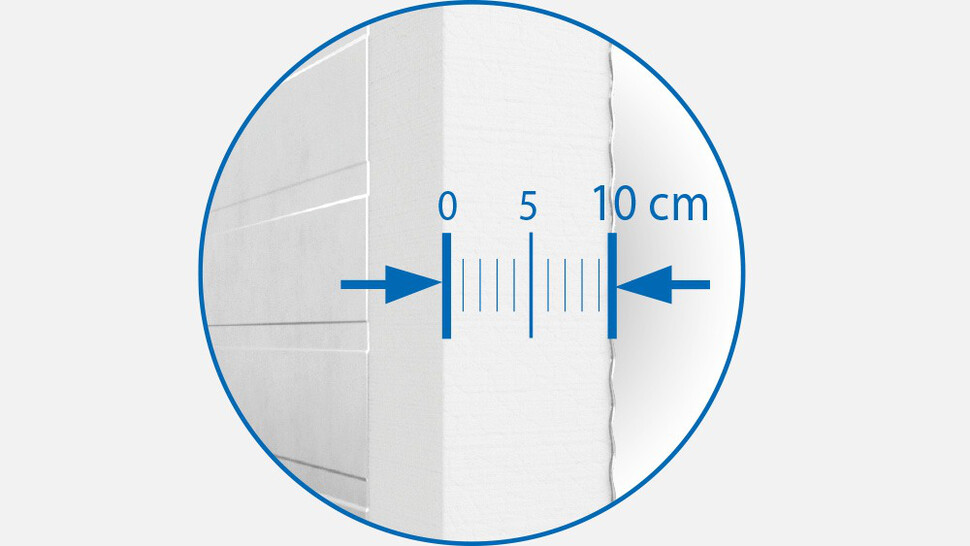

High-performance insulation

The Condair DA Freezer features a 100 mm thick, AISI 304 stainless steel insulated casing. This robust construction minimises thermal bridges, protects sensitive components, and enables reliable operation down to –25 °C outside the cold storage area, preserving valuable storage space while ensuring energy-efficient performance.

Maximised operational efficiency

The Condair DA Freezer is tailored to each application, balancing airflow, rotor size and speed, regeneration power, and control strategy. It prevents ice formation not only on surrounding surfaces, but also keeps the cold store’s cooling cassettes ice-free, reduces defrost cycles, and improves overall operational efficiency.

Storage Space Loss

A dehumidifier placed in a cold storage room reduces storage space and can cause condensation in the regeneration air ducts.

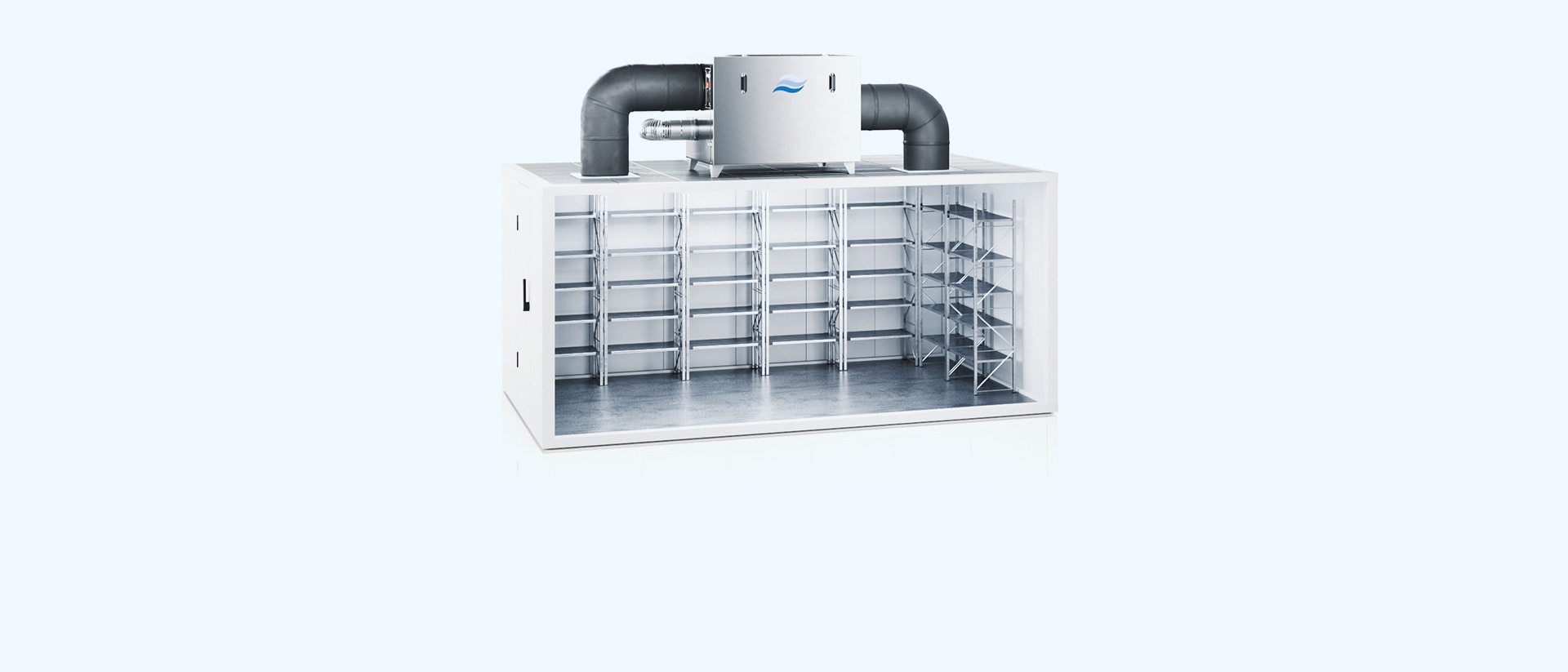

DA Freezer

The Condair DA Freezer, which is installed outside the cold storage room, saves space while effectively preventing ice build-up on products and equipment.

Cold Storage Issues

Problems with cold storage, such as ice on products, floors and equipment, condensation and high energy consumption, impair safety, efficiency and product quality.

Downloads

See all downloads

Spare part shop

Spare parts

Condair will help you identify exactly which component you need and ensure you receive it quickly and efficiently.

Frequently asked questions

What capacities and configurations are available for the Condair DA Freezer series?

The Condair DA Freezer series offers a wide range of capacities, with process air flows from 500 m³/h up to 4000 m³/h and regeneration air flows from 150 m³/h to 550 m³/h. There is no one size fits all solution for demanding freezer applications. Each unit must be individually configured, balancing airflow, rotor size and speed, regeneration power and control strategy to ensure optimal dehumidification performance and energy efficiency operation. The units are designed to operate reliably in temperatures down to -25 °C.

Why is dehumidification necessary in freezer storage facilities with the Condair DA Freezer?

In freezer storage, very cold air can hold only small amounts of moisture. Incoming humid air condenses as ice on products, floors, walls, and cooling equipment, causing operational hazards, equipment malfunctions, and reduced product quality. Dehumidification with a Condair DA Freezer continuously removes moisture, preventing ice formation, maintaining safe conditions, and ensuring efficient, reliable operation.

What must be considered when installing a Condair DA Freezer?

Proper installation of the Condair DA Freezer is essential for safe and efficient operation. Process air ducts must be well insulated, and the dry air duct should have only minimal pressure drop to avoid excessive internal infiltration. Reactivation and wet air ducts must be sloped or fitted with condensate drains to prevent water accumulation. Motorized dampers, synchronized at the wet and reactivation air duct, should be installed to protect the unit from moisture ingress when idle. Improper installation or operation can lead to icing, which may reduce performance or damage the unit. Always consult Condair to determine the optimal installation and control configuration for each application.

Podcast: Reducing ice in freezers with dehumidifiers

In this short podcast, Dave Marshall-George, Sales Director at Condair, gives an overview of the specialist technology used to dehumidify at such low temperatures, the different strategies for doing so and the energy saving features that can be employed for fast return on investment.
