Flexible controls
Control is via a standard modulating control signal e.g. 0-10 VDC, 0-10 mA, 4-10 mA. The NKBD series is also able to connect to a MODBUS interface for building automation systems.
NKBD Ultrasonic Humidifier
Ultrasonic humidifierThe NKBD series is designed for in-duct applications, made of hygienic stainless steel and is equipped with an auto-drain flushing system.
The unit is designed for easy connection to water, drainage, and electrical supply lines.
The unit is designed for easy connection to water, drainage, and electrical supply lines.

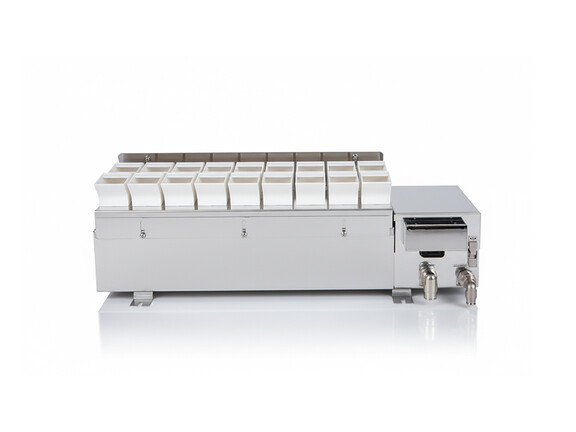

Condair NKBD ultrasonic humidifier

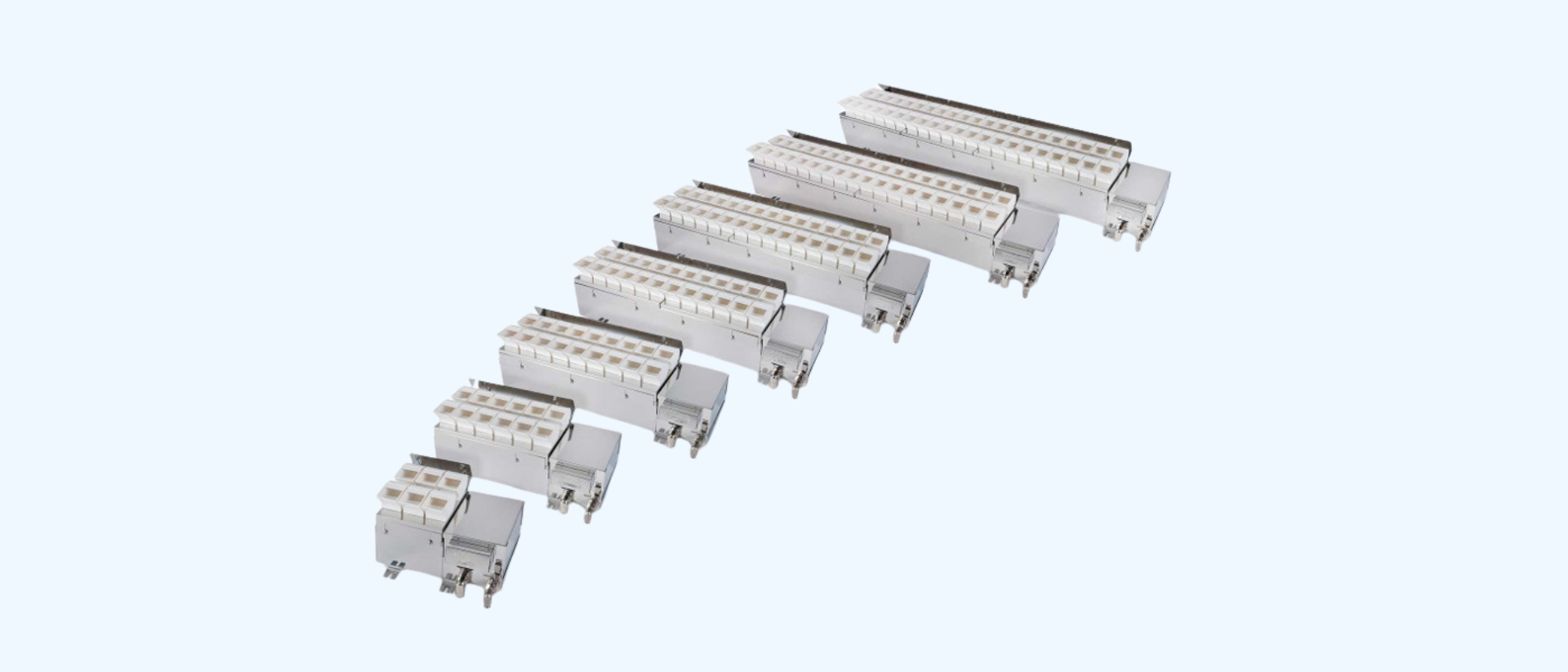

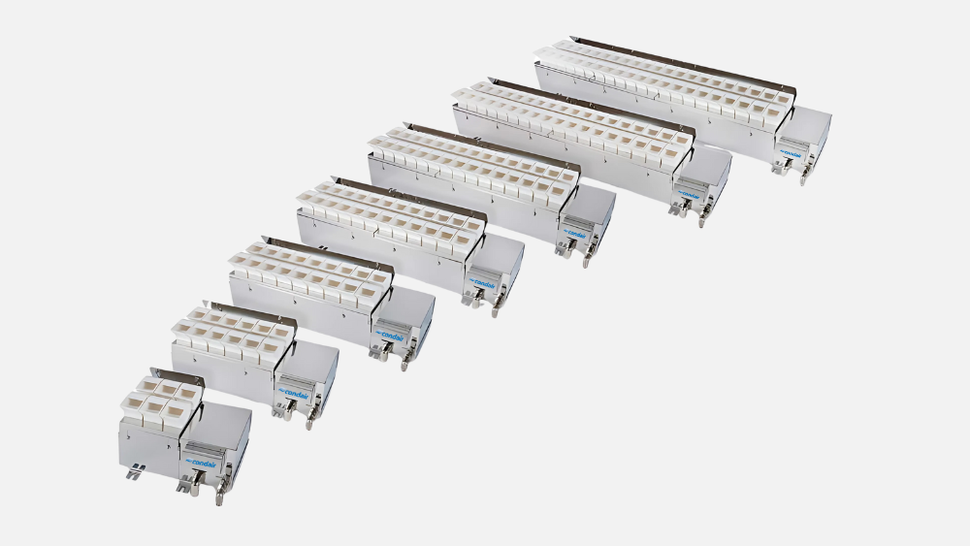

Range of outputs available

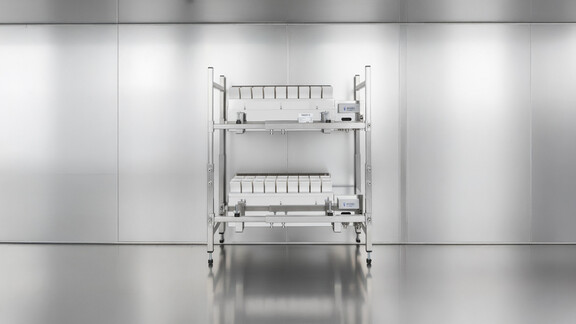

A single unit's humidification output ranges from 3.6kg/h to 25.2kg/h. Several NKBD ultrasonic humidifiers can also be connected and combined to offer larger humidification capacities. The units can be mounted on adjustable racks.
Low energy consumption ultrasonic humidifier
Thanks to an energy-efficient design, the NKBD ultrasonic humidifier range uses only a small amount of electricity during operation. Ultrasonic technology enables instant humidification, meaning there is no wasted energy when the unit is switched on.
AquaDrain flushing
Integrated ‘AquaDrain’ cyclical flushing system of the water inlet pipe and cyclical (or permanent) emptying of the fluid tank according to requirements. This ensures hygiene levels are kept at an optimal level.
Possibility to connect a safety chain
Ultrasonic oscillating circuit with 1.7 MHz exciter frequency
Electrical power connection 48V AC to lead-through terminals for wire up to 25mm²
Close humidity control
Due to the very fine mist created by ultrasonic humidification, you can tightly adjust the humidity levels to meet your requirements.
Instant humidification
As soon as a request impulse is received, humidification begins immediately.
Inbuilt automated self-protection features
The NKBD contains automated dry-running protection, overheat protection, protection against overvoltage peaks, overflow and disconnection protection.
Frequently asked questions
Can the system be expanded for higher humidification demand?
How does it maintain hygiene and prevent microbial growth?
How does ultrasonic humidification work?
What are the main benefits of ultrasonic humidification?
What water quality is required?
Where can an NKBD ultrasonic humidifier be installed?
Get free expert advice
If you want to explore your options for humidity control, Condair's expert sales engineers will visit your site, review your project and talk you through their recommendations.
Alternatively, if you would prefer a call or online meeting, our team are always happy to discuss possible solutions and offer free technical advice.
