Humidity Equals Productivity at VMT Spinning in India

VMT Spinning Company has recently installed a JetSpray humidification system from Condair in its post winding section, at its state-of-the-art cotton production facility in Baddi, India, to maintain yarn quality and strength. The JetSpray humidifier was supplied and installed by Condair’s Indian representative, Regent Machine and Servicing, and is capable of delivering around 250 litres of moisture per hour to maintain the ideal air humidity.

Moure about Condair JetSpray

VMT is part of the well-known Vardhman Group and maintains the highest production standards at its Baddi factory to meet the demanding needs of its mainly Japanese and European customers.

Gurpreet Singh, Unit Head at VMT, comments, “The JetSpray has proved highly suitable for our requirements. It consistently maintains the required relative humidity in the area and has very hygienic operation. It is a sealed system with no circulation of water, so there is no scope for growth of micro-organisms. It is also user friendly and practically maintenance-free.

Mr Singh continues, “The humidifier is also excellent as an in-room top up system to supplement existing air washers fitted in air handling units. During the hot, dry summer season, the humidifier further benefits us by reducing the temperature in the area, creating a more pleasant and productive environment for staff.”

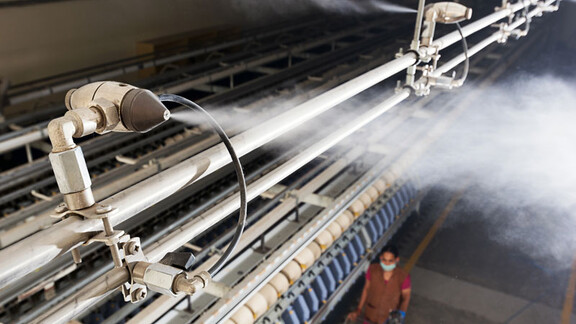

The JetSpray humidifier consists of rows of stainless steel nozzles, mounted high in the area to be humidified, which combine compressed air and water to produce very fine aerosols. The use of compressed air atomises the water so it evaporates very rapidly and guarantees drip-free humidification. As moisture is introduced across an area from many points of injection, the humidity level is very consistent and evenly spread throughout the room. This helps avoid high and low levels that some singular spot humidifiers can cause in a production area.

Automatic flush and drain cycles ensure water cannot remain in the system to stagnate and combats microbial growth. Optional UV sterilisation or silver ion dosing offer additional hygiene safeguards for total peace-of-mind.

The JetSpray humidifier uses standard plumbing fittings so is easy to install in busy industrial environments and the nozzles have a self-cleaning mechanism that minimises maintenance. A tiny pin pushes through the nozzle’s spray orifice whenever the system stops operating to prevent blockages affecting performance. The innovative design makes the nozzles so robust in operation that they carry a 10-year warranty.

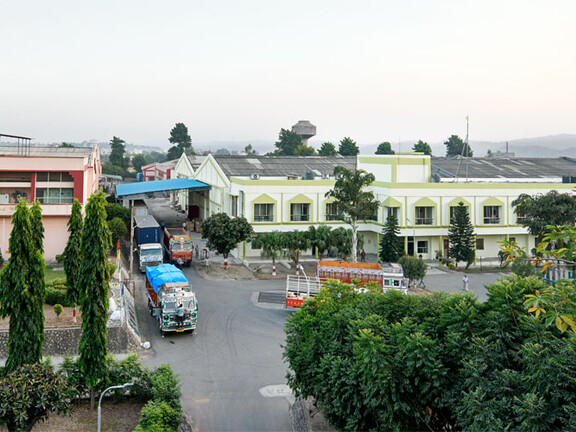

VMT Spinning Company at Baddi was formed in 1993 when Vardhman entered into a joint venture with M/S Marubeni Corporation and Toho Rayon Co Ltd of Japan.

“The JetSpray has proved highly suitable for our requirements. It consistently maintains the required relative humidity in the area and has very hygienic operation. It is a sealed system with no circulation of water, so there is no scope for growth of micro-organisms. It is also user friendly and practically maintenance-free."

Condair in action

Projects and references

Ganges Jute Mill

15 JetSpray humidification systems are maintaining an optimum 70%RH in the spinning and weaving areas of Ganges Jute Mill in Kolkota, West Bengal. With a total output of up to 9,000 litres of humidity per hour, the humidification system helps maintain jute product weight and quality as well as delivering evaporative cooling for the hard working mill staff.

Parmeshwari Tea, India

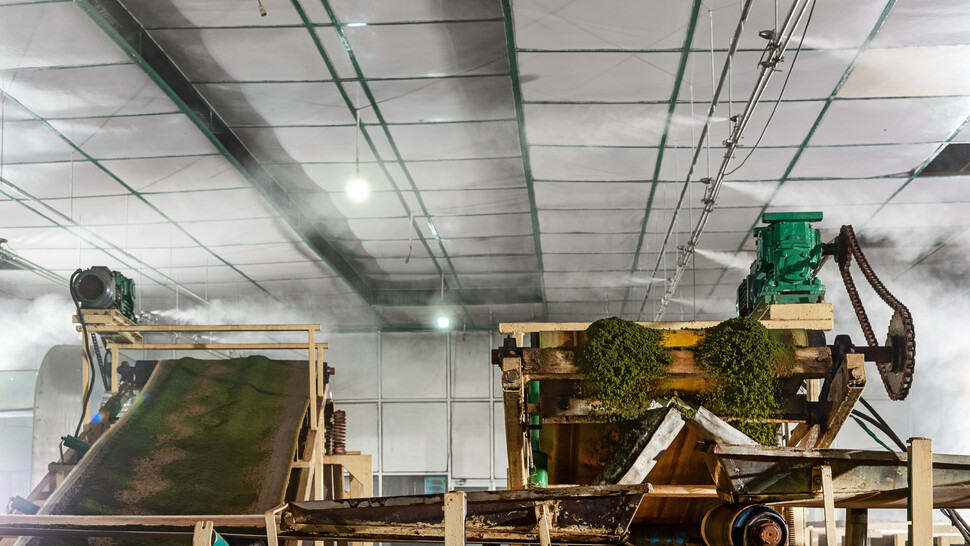

Humidity control specialist, Condair, and its Indian distributor, Regent Machine & Servicing, has supplied and installed a JetSpray humidification system at Parmeshwari Tea factory in Assam. The compressed air and water spray humidifier is maintaining the ideal humidity in the CTC and CFM areas to prevent moisture loss from the tea during processing and fermentation. This results in a consistently high quality tea, which is blacker and with stronger liquor, no matter what the ambient weather conditions are like.
