ML Flex - Flexible integration options
The ML Flex spray head is an atomising nozzle system without fans or electrical connections, ideal for large industrial areas and ATEX environments.

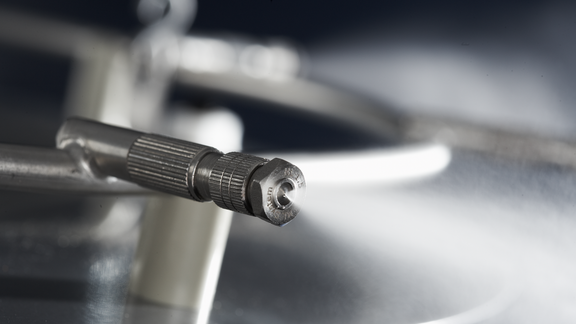

ML Flex sprayhead
High pressure sprayheads for larger facilitiesThe ML Flex allows ultra fine water particles to be evaporated into the air using high pressure technology. The string line design of the Flex ensures full scaleability and customization. The ML Flex is applicable for both direct room or induct humidification. The stainless steel pipes and nozzles ensure top hygiene and long product lifetime.
Condair ML Flex sprayhead in-room high pressure humidification
Flexible and future-proof

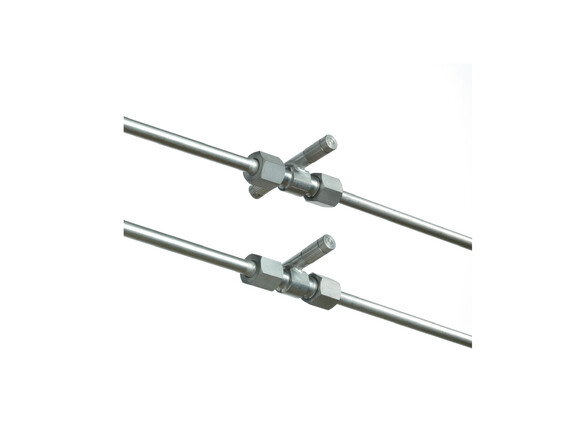

ML Flex is designed for simple and flexible installation. The humidification nozzles are mounted directly onto the piping system, eliminating the need for electrical connections at the point of humidification. This reduces installation complexity and simplifies system expansion.
Each stainless steel nozzle delivers up to 4.5 kg of water per hour, providing efficient and precise humidification. The modular design allows additional nozzles to be added as requirements change, making ML Flex a future-proof solution that can easily adapt to new layouts, zones or capacity demands.
Each stainless steel nozzle delivers up to 4.5 kg of water per hour, providing efficient and precise humidification. The modular design allows additional nozzles to be added as requirements change, making ML Flex a future-proof solution that can easily adapt to new layouts, zones or capacity demands.
Explosion-proof design for industrial environments
ML Flex is designed for use in production facilities where safety requirements are critical. The explosion-proof system design makes it suitable for industrial and manufacturing environments where ATEX compliance or elevated safety standards may be required. By eliminating electrical components at the point of humidification, ML Flex supports safe operation in areas with strict safety regulations.
For optimal performance, ML Flex is recommended for installations with ceiling heights of 7.3 metres or higher. This makes the system particularly well suited for heavy industry, large-scale production areas and manufacturing facilities where reliable humidification must be combined with robust safety design.
For optimal performance, ML Flex is recommended for installations with ceiling heights of 7.3 metres or higher. This makes the system particularly well suited for heavy industry, large-scale production areas and manufacturing facilities where reliable humidification must be combined with robust safety design.
Hygienic design based on HACCP principles
The ML humidification system is designed, produced and serviced in accordance with HACCP principles, ensuring a high level of hygiene and operational safety. This approach supports controlled and traceable processes throughout the system’s lifecycle, from manufacturing to installation and ongoing service. By applying HACCP-based procedures, potential hygiene risks are systematically identified and managed, helping to ensure safe and reliable humidification in environments with strict hygiene requirements. This makes the ML system suitable for applications where controlled indoor climate conditions and hygienic operation are essential, such as production facilities, storage areas and other regulated environments.
ML Solo - Quiet and discreet performance
Low-noise operation makes the ML Solo spray head suitable for sensitive environments such as printing facilities, museums, commercial and office spaces. Available with 1 or 2 nozzles.
ML Princess - 360° humidification
The ML Princess is a high-volume spray head designed for large facilities with high humidification demands. The ML princess offers flexibility to match humidification demands and the built-in fan ensures a 360° even distribution. Ideal for larger production facilities, warehouses and manufacturing sites.
Multiple spray head types
Choose from a variety of high-performance spray heads to meet specific throw distances, mist patterns, and room layouts. The ML system offers flexibility to operate in multiple zone control.
Energy-efficient operation
Operates with low power consumption using high-pressure pumps and precision atomizing nozzles — ideal for reducing operational costs.
Modular and scalable design
The ML Series can be scaled to match any room size or humidity demand — from single-room installations to large industrial facilities.
Optional reverse osmosis unit
Enhance hygiene and minimize maintenance with an RO unit that reduces mineral content and prevents nozzle blockage.
Advanced water pre-treatment tank
Supports integrated pre-treatment options such as filtration and softening to ensure consistent nozzle performance and system longevity.
Other spray heads in this series
ML Princess spray head
The ML Princess has a unique and patented design ensuring the right amount of ultrafine water particles being evaporated into the air using high pressure technology. The design ensures no dripping from the high pressure nozzles and the fan inside ensures the right speed and flow. The ML Princess is ideal to use in larger production facilities with high ceilings.
ML Solo spray head
The ML Solo spray head ensure silent and even humidification in smaller areas such as office spacing, public areas or commercial facilities.
ML System
Robust construction, low maintenance and offers a wide range of options for any direct room application.
Discover Condair in action

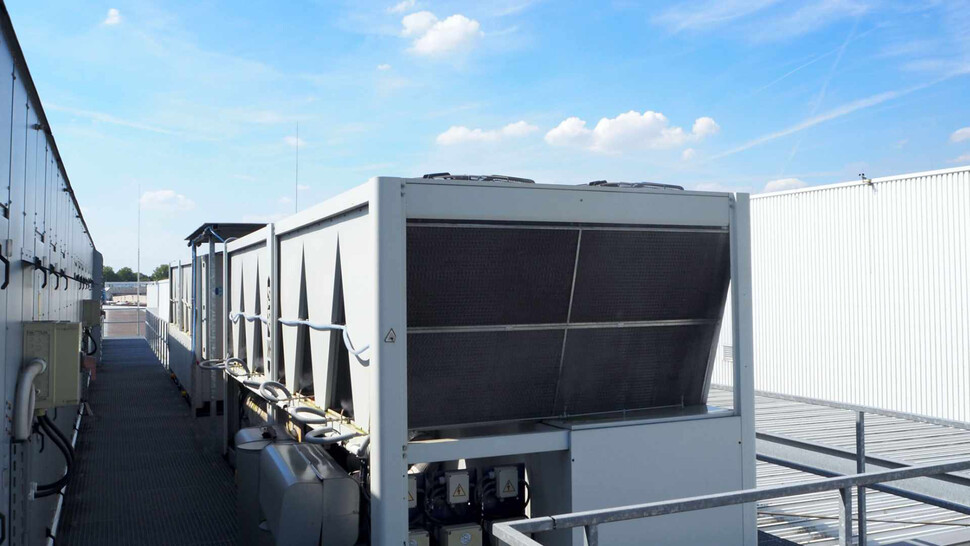

Hella GmbH & Co. KGaA (Cooling), Recklinghausen (Germany)
Direct room humidification can be used both for conditioning the room air and for process cooling. The automotive supplier HELLA in Recklinghausen makes use of the principle of adiabatic cooling with additional air humidification.
Argelith Bodenkeramik H. Bitter GmbH, Bad Essen (Germany)
Argelith Bodenkeramik H. Bitter GmbH (Bad Essen) is one of the world's leading companies as a manufacturer of high-quality industrial tiles. In order to reduce the high heat loads caused by the thermal processes of production, the company uses direct room air humidification.
V-ZUG, Switzerland
As a manufacturing company for household appliances for kitchens and laundry rooms, V-ZUG has a dual impact on the environment: they design appliances to be as efficient in use as possible, and they produce these appliances with maximum resource efficiency and minimal emissions.
The new Zephyr Hangarœ building at the Zug site houses a new sawtooth-roof structure that includes the pressing facility, where manufactured parts are also enameled. These production processes generate large amounts of waste heat, resulting in extremely dry indoor air, which in winter can drop to just 10 percent relative humidity. This presents a major challenge for the comfort of employees and the wood-intensive building, as the wooden structure requires a minimum humidity level of 30 percent relative humidity. Additionally, this situation poses a significant challenge for sustainable cooling.
This is where Condair comes into play! The solution involves Condair˜s high-pressure nozzle system,
ML-FLEX, with 152 nozzles providing a nethumidification capacity of approximately 280 liters per hour and a simultaneous, calculated evaporative cooling effect of 16 Kelvin, meaning the room air is sustainably cooled from around 38 degree centigrade to approximately 22 degree centigrade during the humidification process.
The new Zephyr Hangarœ building at the Zug site houses a new sawtooth-roof structure that includes the pressing facility, where manufactured parts are also enameled. These production processes generate large amounts of waste heat, resulting in extremely dry indoor air, which in winter can drop to just 10 percent relative humidity. This presents a major challenge for the comfort of employees and the wood-intensive building, as the wooden structure requires a minimum humidity level of 30 percent relative humidity. Additionally, this situation poses a significant challenge for sustainable cooling.
This is where Condair comes into play! The solution involves Condair˜s high-pressure nozzle system,
ML-FLEX, with 152 nozzles providing a nethumidification capacity of approximately 280 liters per hour and a simultaneous, calculated evaporative cooling effect of 16 Kelvin, meaning the room air is sustainably cooled from around 38 degree centigrade to approximately 22 degree centigrade during the humidification process.

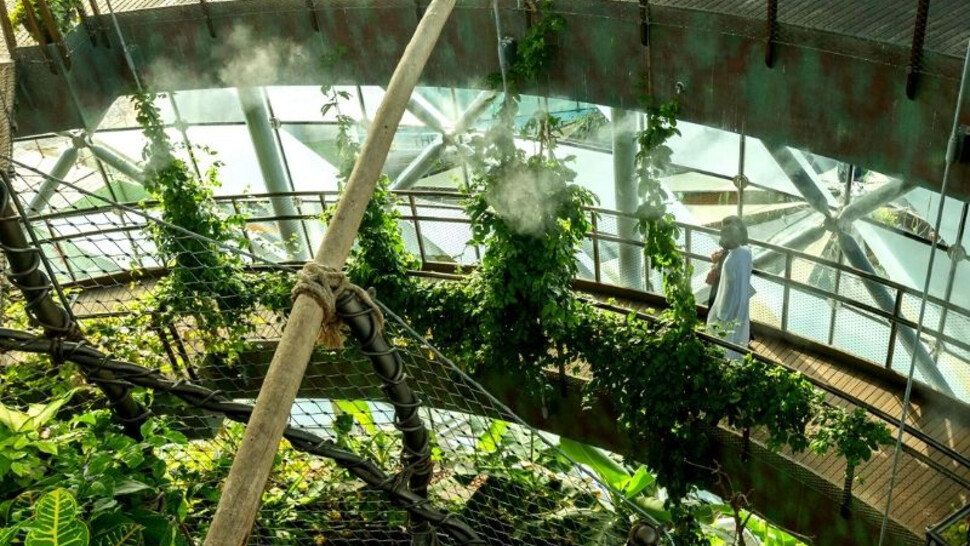

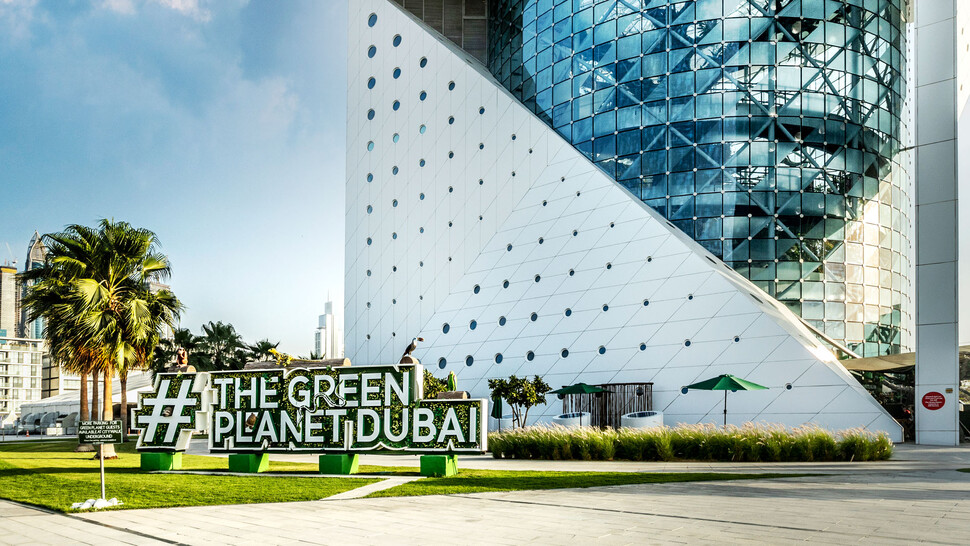

The Green Planet Bio-Dome
The Green Planet is a bio-dome in Dubai offering visitors the chance to explore a striking variety of tropical plants, insects, reptiles, birds and mammals. This contained tropical rainforest is maintained at a constant 24-27°C with high humidity, ensuring an ideal climate for the flora and fauna.The building has been designed with sustainability in mind, having received the Leed (Leadership in Energy and Environmental Design) certification and is fully compliant with the Dubai Municipality green building regulations and specifications.The Condair's ML Flex high-pressure humidifiers installed are capable of introducing up to 720 litres of moisture per hour to maintain the desired internal humidity while also providing up to 490kW per hour of low energy evaporative cooling.
Gonçalves
Johanson Dielectrics
Plastic Omnium
Plexus
Specialized Packaging
Located in Baldwinsville, New York the PaperWorks Packaging Group provides a full range of folding carton capabilities backed by an experienced team.
Quotes from our customers
Adrian Theiler
COOOur aim is to prevent, reduce and offset CO2 emissions.
Markus Aulbert
Energy and environmental management"Adiabatic direct room air humidification is a manageable investment with a great effect."
Thomas Hering
Head of Technical Service"On Condair's recommendation, we installed an additional air humidification system in 2021 solely for process cooling of the refrigeration systems on the roofs. Since then, the recirculation cooling has been working without any problems, even in summer."
Get free expert advice
If you want to explore your options for humidity control, Condair's expert sales engineers will visit your site, review your project and talk you through their recommendations.
Alternatively, if you would prefer a call or online meeting, our team are always happy to discuss possible solutions and offer free technical advice.
